Device idntification

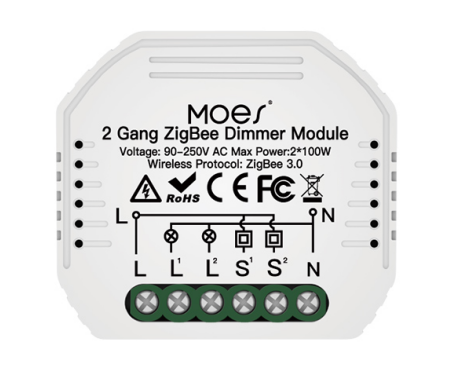

- Device name:ZigBee 2gang Dimmer Module
- Device model: ZM-105B
Short description
Connectivity
ZigBee
Specifications
Product type:2 Gang ZigBee Dimmer Module
Voltage:90-250V AC 50/60Hz
Max Power:2*50W 110V / 2*100W 220V
Wireless Protocol:ZigBee 3.0
Operation temp：-10ºC - +45ºC
Case temp:Tc：+80ºC (Max.)
Operation range：≤200 m
Dims (WxDxH)：52x47x18 mm
IP rating：IP20
Maximum Radio Transmit Power：<+20dBm
Frequency Band：2.400-2.483GHz
Troubleshooting
....
Compliance
Printed User Guides
ZM-105B User Manual.pdf
