Device idntification

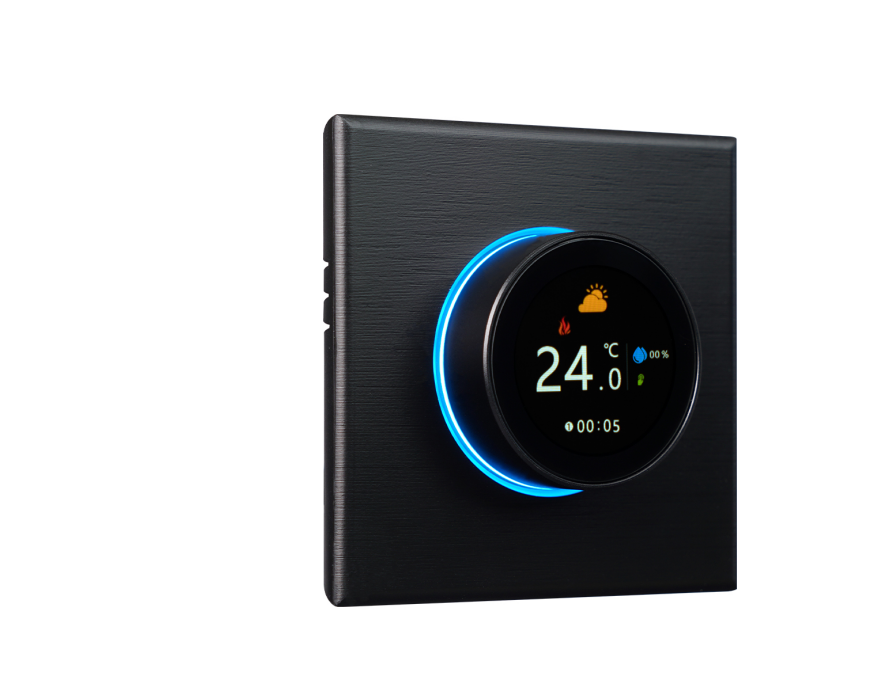

- Device name：WIFI Smart Knob Thermostat
- Device model：WHT-7000
Connectivity
WIFI
Specifications
Power supply:95 ~240 VAC, 50~60Hz or 24V DC/AC, 50~60Hz
Please check the information laser printed on the back of the thermostat
for the actual voltage.
Current Load: 5A (water heating, gas boiler), 16A (electric heating
Sensor: NTC3950,10K
Accuracy: +1°C
Set Temp.Range: 5-35°C
Room Temp. Range: 5-99°C
Display Temp. Range: 5 ~ 99°C
Ambient Temp.: 0~ 45°C
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Storage Temp.:0~45°C
Power Consumption: <1.5W
Timing Error:<1%
Shell Material: PC +ABS ( Fireproof)
Installation Box: 86* 86mm Square or European 60mm Round Box
Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class:lP20
Buttons: Capacitive Touch Buttons
Troubleshooting
Compliance
EU Declaration of conformity.
